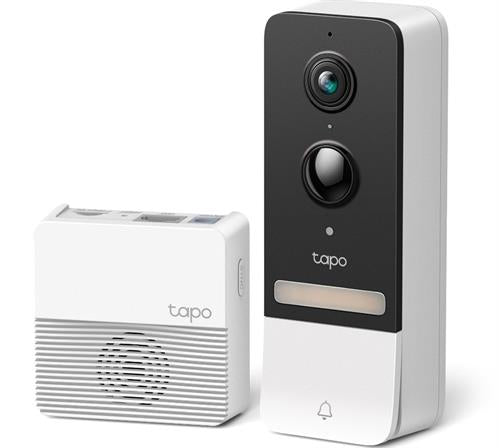

TP-Link TAPO D230S1 TAPO Smart Battery Video Doorbell

TAPO-D230S1

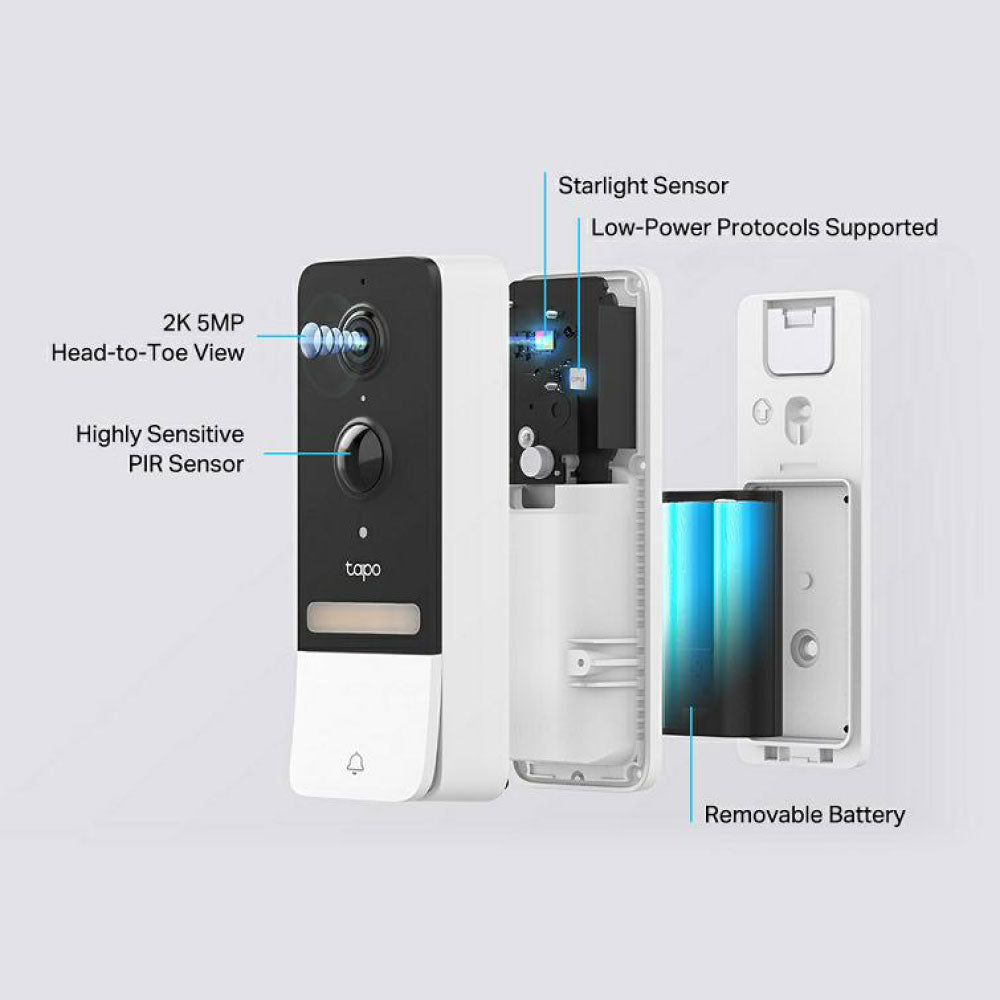

- 2K 5MP Live View: Always know what happens in front of your door through the TAPO app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
- Color Night Vision: With the embedded spotlight and starlight sensor, TAPO D230S1 reveals high-fidelity details and color at night.
- Head-to-Toe View: With the camera's ultra-wide FOV (160 degree Diagonal), TAPO 4:3 live view ensures users can check visitors from head-to-toe as close as 1m (1), which shows more vertical details than other 16:9 doorbells'.
- Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.
- Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
- Smart AI Detection and Notification: Smart AI algorithms identify people and cars, and notify users as needed.
- Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the TAPO app.
- Flexible Storage Choice: Save recorded videos on the hub-installed Micro-SD card (3) (up to 512GB - Micro-SD Card is not included in package) or by using TAPO Care (4) cloud storage services.
- Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
- Water & Dust Resistant IP64: Operates well on rainy days and in damp environments.

Smart. Secure. Easy.
Always Know Who's There

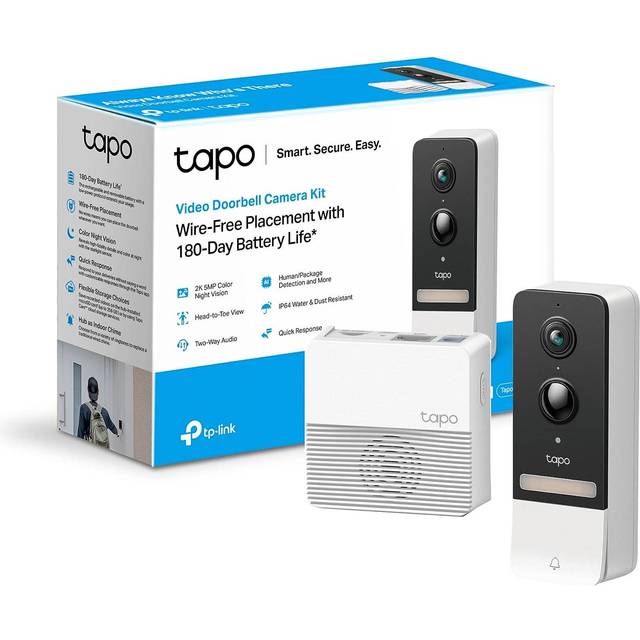

Video Doorbell Camera Kit
TAPO D230S1

Features:
2K 5MP Live View:
- Always know what happens in front of your door through the TAPO app. With the starlight sensor and 2K 5MP resolution, check all the fine-details captured even in low-light environments.
Color Night Vision:
- With the embedded spotlight and starlight sensor, TAPO D230S1 reveals high-fidelity details and color at night.
Head-to-Toe View:
- With the camera's ultra-wide FOV(160 degree Diagonal), TAPO 4:3 live view ensures users can check visitors from head-to-toe as close as 1m (1), which shows more vertical details than other 16:9 doorbells'.
Flexible Placement, Flexible Views:
- Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.
Longer Battery Life:
- The rechargeable and removable battery with a low-power protocol extends your usage. (6700 mAh - Working for 180 days (2) )
1/ Trigger Times: 10 times - 30s/per clip, Battery Life (2): 6 months / House with Private Courtyard
2/ Trigger Times: 20 times - 30s/per clip, Battery Life (2): 3 months / Apartment or Flat
3/ Trigger Times: 60 times - 30s/per clip, Battery Life (2): 1 month / House Facing the Street
Person and Vehicles Detection:
- Powerful Al identifies people or vehicles, notifying users with filtered notifications.
Multiple Ways to Answer
With two-way audio or a recorded quick response, communicate directly with your deliveries through the TAPO app.
Indoor Chime Provided:
- Choose from a variety of ringtones to get alerted immediately when you are at home.

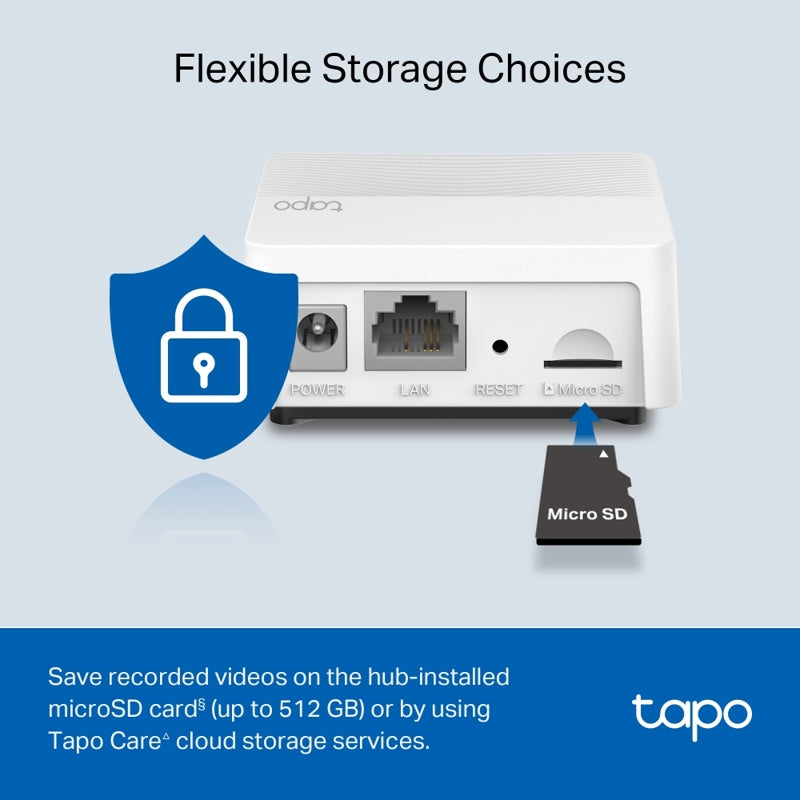

Flexible Storage Choice:
- Save recorded videos on the hub-installed Micro- SD card(3) (up to 512GB - Micro-SD Card is not included in package) or by using TAPO Care (4) cloud storage services.
Anti-theft Alarm:
- Be alerted when someone tries to take the doorbell off with the anti-theft alarm function.

Notes:
1/ The data is measured based on the optimal installation height of 1.2m of the doorbell, the actual distance will be affected by the installation height.
2/ Battery life of up to 180 days is based on TP-Link's laboratory testing triggering 10-20 events per day. Actual battery life may vary based on device settings.
3/ Micro-SD card can be purchased separately.
4/ Subscribe TAPO Care at https://www.tapo.com/en/tapocare/

Specifications:
CAMERA
- Image Sensor: 1/2.7"
- Resolution: 2K 5MP (2560 1920px)
- Lens:
a) F/NO: 2.1
- Viewing Angle: 160 degree Diagonal
- Night Vision: 850nm IR LED up to 25ft (+/- 8m)
- Weatherproof Rating: IP64
VIDEO
- Frame Rate: 15fps
- Video Streaming: 2K 5MP
- Audio Compression: G.711
- Video Compression: H.264
AUDIO
- Audio Communication: 2-way audio
- Audio Input & Output: Built-in microphone and speaker
NETWORK
- Standards and Protocols: IEEE 802.11b/g/n, 2.4GHz
- Security: 128 bit AES encryption with SSL/TLS
- Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
- Frequency: 2.4GHz
- Wireless Security: WPA/WPA2-PSK
ACTIVITY NOTIFICATIONS
- Input Trigger: Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection
- Output Notification: Notification, Snapshot (TAPO Care), Clips (TAPO Care)
ENVIRONMENT
- Operating Temperature: -20 Degree Celsius - 45 Degree Celsius
- Storage Temperature: -20 Degree Celsius - 45 Degree Celsius
- Operating Humidity: 10% - 90%RH, Non-condensing
- Storage Humidity: 5% - 90%RH, Non-condensing
HARDWARE
- Button:
a) Doorbell Button: Reset/SYNC/Anti-Theft Button
b) Hub Button: Reset Button; SYNC Button
- Indicator LED:
a) Doorbell Indicator LED: System LED
b) Hub Indicator LED: System LED
- Adapter Input:
a) Doorbell Adapter Input: 100 - 240V, 50/60Hz
b) Hub Adapter Input: 100 - 240V, 50/60Hz, 0.3A
- Adapter Output:
a) Doorbell Adapter Output: 5.0V, 1.0A
b) Hub Adapter Output: 9.0V, 0.85A
